The Autonomy Dial

When an AI agent can release a wire, clear a sanctions alert, or route an order, someone has to decide which actions it takes alone and which wait for a human reviewer. I designed the workspace where an operations lead sets that line and sees both costs at once: an error the agent cannot take back, and a review queue the team cannot clear.

Human-in-the-loop
AI governance
Capital markets
Decision geometry
Risk visualization
D3.js

The 2 ways oversight fails

01 · Failure context

Unchecked agents can commit an error that cannot be recalled. Escalating every uncertain action can overwhelm the people expected to catch it. The operator needs to see both risks in the same decision.

In payments, screening, and execution workflows, the consequence depends on the action. A staged schema change has a recovery path. A settled payment may not. Treating those actions as the same confidence threshold hides the cost of being wrong.

Adding human approval is not a complete answer. The threshold also determines how much work reaches the desk. An approval policy that demands more reviews than the team can complete moves risk into the queue.

I designed autonomy as an operating boundary that can be inspected and changed. Loss and capacity stay visible together, so a reassuring minimum-loss label cannot conceal an overloaded review team.

Role: Product designer. I designed the autonomy boundary, linked loss and capacity views, policy rehearsal, and retained decision record.
Workflow: Agent supervision: choose an automation policy that balances irreversible error, delayed action, and available review capacity.
Data coverage: 5 scenarios: wire release, sanctions clearance, order routing, schema rollback, and review overload. Each sets a threshold, irreversibility, severity, and reviewer count. Capacity is 25 cases per reviewer-hour; loss is in thousands of dollars per 6-hour shift.
Verification: Model checks cover optimization, capacity arithmetic, and fixed policy payloads. The rehearsal tests the decision within those assumptions.
Related products: Stripe Radar routes selected payments into human review with context and assignments. This workspace explores how a review policy changes workload and modeled loss across automation scenarios.

3 questions before an agent acts alone

02 · Scope

Surface. What does this operating coordinate cost, and where does the minimum-loss boundary sit?
Sensitivity. Is the excess loss coming from unchecked errors or from additional review?
Capacity. Can this team handle the escalations, and what accumulates if it cannot?

Locate the policy · explain the loss · check the desk · capture the conditions.

A policy has to fit the review desk. A minimum of the loss model can still exceed staffed capacity. — A minimum of the loss model can still exceed staffed capacity.

3 views, 1 operating boundary

03 · The prototype

The contour surface gives the operator the field, the sensitivity curve explains the selected setting, and the capacity forecast tests whether the desk can carry it. Threshold, irreversibility, and staffing are shared across all 3.

The starting wire-release scenario is deliberately away from the modeled minimum. Move the threshold, inspect the 2 loss components, then change the team size. The boundary moves because reviewer capacity is part of the policy’s operating conditions.

3Linked charts: loss surface, threshold sensitivity, and reviewer capacity.

5Starting scenarios with different consequences and recovery paths.

99%Reviewer utilization at the wire-release minimum-loss threshold.

54Cases in backlog after 6 hours when the overload scenario runs at its own minimum-loss threshold.

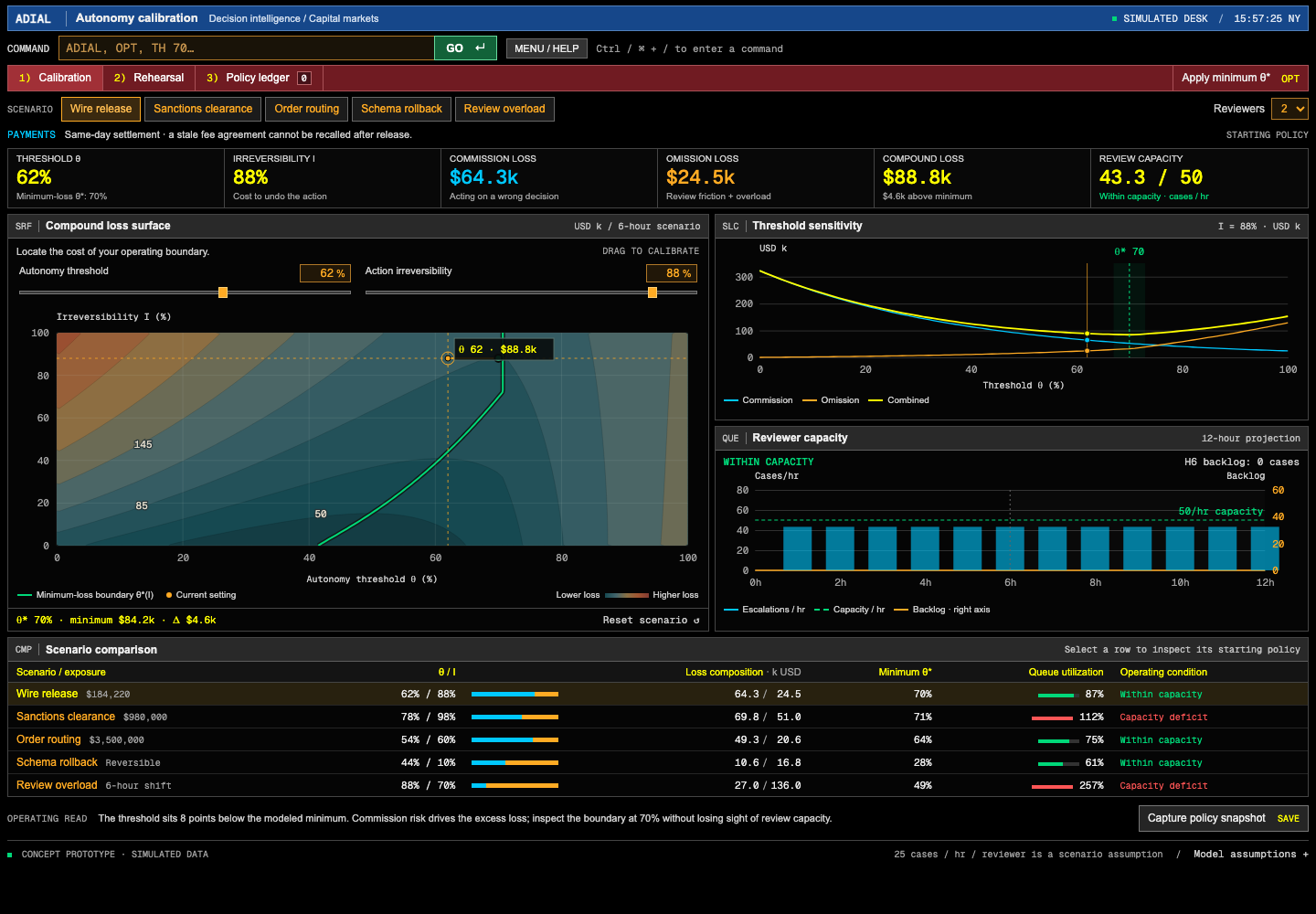

The Autonomy Dial on the wire-release scenario: a loss contour with an amber policy reticle, linked commission and omission curves, a reviewer-capacity forecast, and a comparison of 5 scenarios. — The prototype at θ 62%, irreversibility 88%, and 2 reviewers. Open it to move the reticle, inspect curve values, compare scenarios, or change the review team.

From 62% to a policy the desk can carry

04 · A worked trace

The minimum-loss boundary is computed from the same objective as the surface. Commission loss falls as the threshold rises; review friction and overload add omission loss. The sensitivity curve exposes the sum instead of asking the operator to trust a highlighted target.

For the starting wire-release scenario, the modeled threshold moves from 62% to 70%. Compound loss falls from $88.8k to $84.2k, while review arrivals rise from 43.3 to 49.5 cases per hour. 2 reviewers provide 50 cases per hour of assumed capacity. That minimum runs the desk at 99% of capacity, which a deterministic model calls clear and a real queue with uneven arrivals would not. 63% stays within 5% of the minimum loss ($88.0k) at 88% utilization, and that is the setting I would retain.

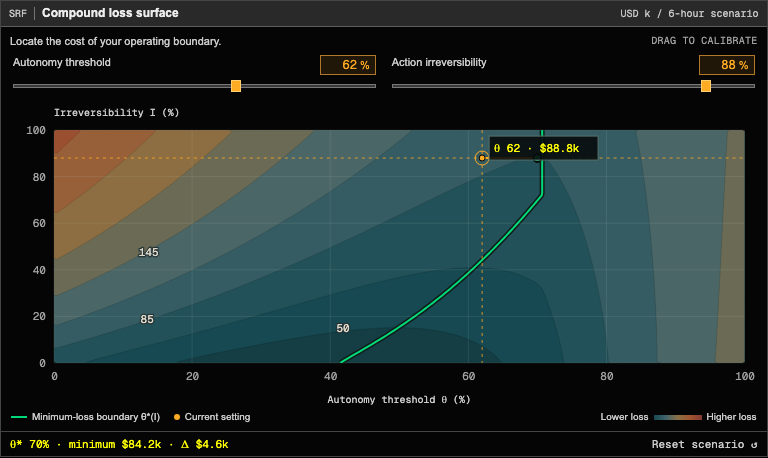

Loss contours with labeled axes and isolines, an amber crosshair at 62% threshold and 88% irreversibility, and a green minimum-loss boundary at 70%. — The amber coordinate is the current setting. The green line is the minimum of the same loss function. The connector makes the difference visible; the sensitivity view explains its cost.

The overload scenario exposes the limit of optimization alone. With 1 reviewer, its minimum-loss threshold is 49%, but it still produces 33.9 escalations per hour against 25 of capacity. The best point in the loss model is still an operational deficit.

The 2 frames below hold that policy fixed and change only staffing. The hourly bars and capacity line share the left axis. Accumulated backlog has its own labeled right axis, so a rate is never drawn as if it were a total.

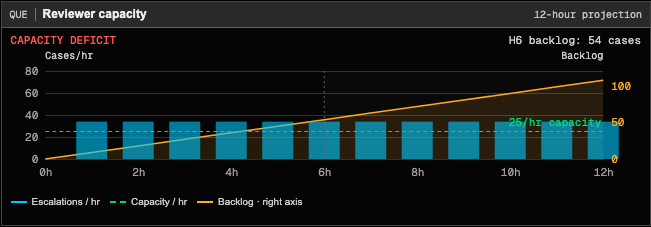

Capacity deficit: hourly escalations stand above the 25-per-hour capacity line and an amber accumulated-backlog curve rises throughout the shift. — θ 49% / I 70% / 1 reviewer. At hour 6 of the 12-hour projection the backlog reaches 54 cases even at the modeled minimum.

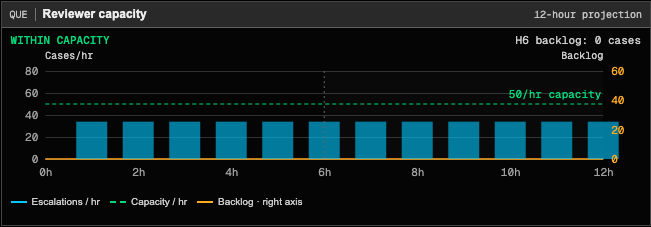

Within capacity: the same hourly escalation bars now sit below a 50-per-hour capacity line, and accumulated backlog remains at 0. — Same θ and I / 2 reviewers. The arrival rate stays 33.9 per hour; capacity rises to 50 and the backlog disappears.

Data

The 25-cases-per-hour capacity per reviewer is an explicit scenario assumption. Arrivals are held constant, so the forecast is a deterministic capacity projection.

Then the rehearsal, and the record that keeps it.

The rehearsal asks the operator to tune a threshold before showing the result. It checks 2 conditions: stay within 5% of the modeled minimum loss and keep review arrivals at or below team capacity. Both must pass.

The checks use the workspace’s own model. A low-loss policy that exceeds capacity fails; a comfortable queue with excessive commission loss also fails. Changing the scenario or threshold invalidates the previous result.

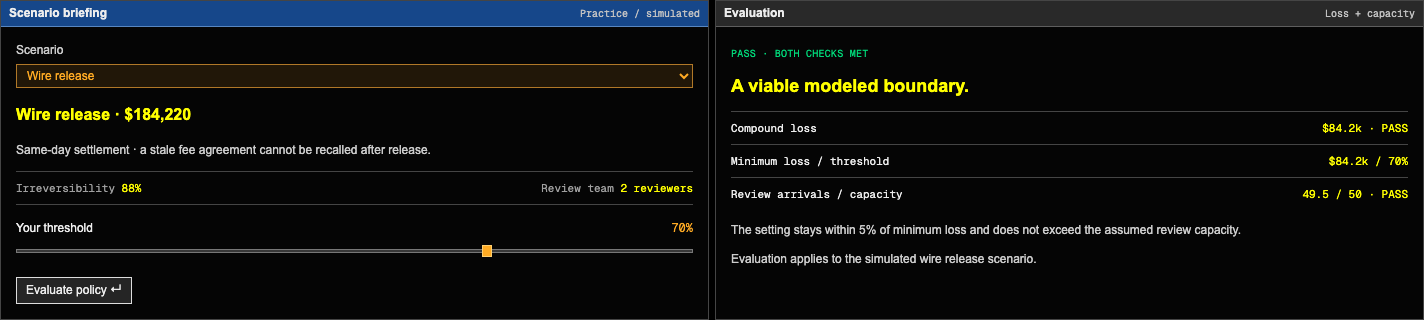

The wire-release rehearsal at threshold 70%: both modeled loss and reviewer-capacity checks pass. The result shows $84.2k combined loss and 49.5 hourly arrivals against 50 of capacity. — An evaluated rehearsal. Open it to choose a scenario and test your own threshold.

A policy record has to explain what the operator retained. Capture preserves the scenario, threshold, irreversibility, team size, model version, loss components, and assumptions together. Changing the controls later leaves that snapshot intact.

The record receives a SHA-256 digest of its JSON payload. Downloading it retains the parameters and integrity metadata for later inspection. The digest checks whether the payload changed; it does not establish institutional approval or regulatory compliance.

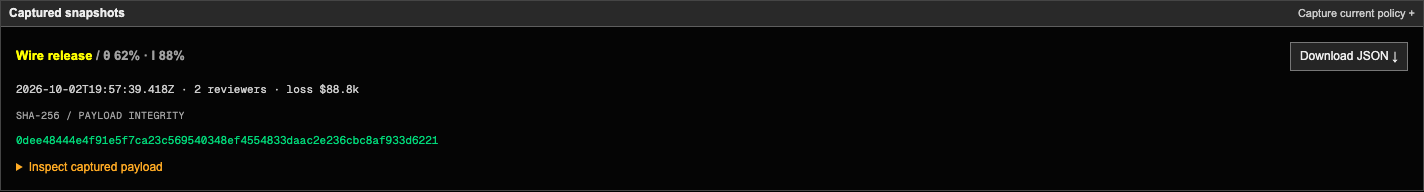

A captured wire-release policy record showing threshold 62%, irreversibility 88%, 2 reviewers, simulated loss $88.8k, its capture timestamp, a SHA-256 digest, and the Download JSON control. — A record captured from the running prototype. Each new session starts with an empty ledger; open the prototype and capture the current policy to create your own.

Conditions: Scenario, threshold, action irreversibility, reviewer count, and capacity assumption.
Reasoning: Commission loss, review friction, overload loss, combined loss, and modeled minimum.
Provenance: Model version, capture timestamp, complete assumptions, and payload digest.
Retention: Snapshots remain in the browser session. A JSON download keeps the record beyond it.

Keep the reasoning with the decision. A retained policy needs the conditions that produced it. — A retained policy needs the conditions that produced it.

The model behind every number

05 · Source

The charts, the rehearsal, and the captured record all read 1 model, stamped ADIAL-2.0 on every record. These are its equations, with t as the threshold and i as irreversibility, both as fractions.

Commission loss: 120 × e^−2.6t × (0.6 + 2.4 i^1.1) × scenario severity. Falls as the threshold rises; rises with irreversibility.
Review friction: 110 × (e^2.8t − 1) / (e^2.8 − 1) × (0.7 + 0.3(1 − i)). The cost of holding actions for review.
Arrivals: 10 + 65 × t^1.4 escalations per hour.
Capacity and overload: 25 cases per reviewer-hour. Arrivals above capacity accumulate for 6 hours, and each waiting case costs $320.
Minimum: An exhaustive search over whole-number thresholds from 0 to 100 for each scenario and team size.

What the model establishes

Each scenario’s exposure labels the action; the loss model does not scale with it, so compare thresholds within a scenario, not losses across scenarios. The queue is a deterministic fluid backlog starting at zero, not an M/M/c waiting-time estimate. Capacity, arrival rates, service times, and mandatory review assumptions determine whether work clears. The prototype exposes the assumptions so a reviewer can test a feasible autonomy level.

Who sets the dial

06 · Audience

Head of payments or treasury operations: Which actions an agent may release alone, and the staffing that policy needs.
Model risk manager: The loss trade-off behind a threshold, and the conditions under which it was approved.
Review desk lead: Whether the escalations a policy creates fit the shift.
Financial crime compliance officer: Which sanctions and payment actions always go to a person.
Internal audit: Whether a retained policy can be reconstructed from its record.

Where this transfers

07 · Same shape, other fields

Any automated decision where a confidence threshold decides what a person must check, and the people are a fixed budget, has the same 2 costs to balance.

Fraud and chargeback review: Score thresholds that send transactions to analysts.
Trade surveillance: Alert thresholds against a fixed compliance team.
KYC onboarding: Automatic approval against manual document review.
Insurance claims: Straight-through payment against adjuster review.

3 decisions

08 · Trade-offs

A marked minimum, judged apart from capacity: The optimizer marks the lowest-loss threshold, but capacity is shown as its own pass or fail. The overload scenario stays in the prototype because it is where the 2 disagree.
A deterministic queue, not a stochastic one: A fluid backlog is easy to read and to check by hand, and it understates waiting near full capacity. That is why the trace retains 63%, not the 99%-utilization minimum.
A record with a digest, not an approval: The SHA-256 digest shows whether the payload changed. Sign-off belongs to the institution’s own workflow, and the record does not stand in for it.

Where I expect to be wrong. Operators may trust the green minimum line more than the capacity status. If fewer than 6 of 8 study participants catch the overload deficit before capturing a policy, capacity becomes a gate on the capture button.

What I would measure

09 · The study this needs

The workspace makes an argument. It does not yet have evidence from operators. This is the study I would run before calling it better, with the pass line set before any session.

Participants: 5 to 8 people who set or review automation thresholds: payments and treasury operations leads, model risk managers, and fraud or sanctions review leads.
Task: Set and retain a policy for 3 scenarios, including review overload, once in this workspace and once with a loss table and a separate staffing sheet, order counterbalanced. A second participant then reconstructs each policy from its record.
Measures: The loss component named as driving a threshold change, whether a capacity deficit is caught before capture, the utilization of each retained policy, and whether the second participant reconstructs the conditions without asking.
Pass line: The overload deficit caught before capture by at least 6 of 8 participants, more than with the table and sheet; the driving component named correctly in at least 2 of 3 scenarios; every record reconstructed without asking the author.

How it is built

10 · Stack and craft

Stack and craft

Working instrument: D3.js contours and SVG charts, native controls, and a shared decision model without a framework runtime.
Loss boundaries are calculated from the same objective as chart values, rehearsal results, and captured policy metrics.
Local assets support direct-file and HTTP previews. Keyboard controls, visible focus, reduced motion, and mobile layouts are supported.
Role: product design and prototype engineering, including the loss geometry, capacity interaction, scenario comparison, and policy artifact.
Diagram sources: editable Excalidraw files with SVG and PNG exports.
